Monel Coarse Woven Wire Filter Mesh | 0.28mm Wire – 20 LPI

Description

Monel Coarse Woven Wire Filter Mesh

This coarse Monel woven wire mesh offers a combination of strength, corrosion resistance, and high open area. With 20 holes per linear inch and 400 holes per square inch, this mesh features 0.99mm square holes, created using 0.28mm thick Monel wire. The result is a strong yet lightweight mesh with an impressive 61% open area, making it ideal for filtration, airflow, and screening in demanding environments.

Monel is a nickel-copper alloy known for its exceptional resistance to corrosion, especially in marine and chemical applications. Unlike regular steel or stainless steel, Monel holds up against saltwater, acids, and alkalis, making this mesh well-suited for use in coastal, laboratory, or industrial settings.

Despite its durability, this mesh is very workable. It can be cut easily using standard kitchen scissors, allowing for fast on-site adjustments without specialist tools. The uniform square pattern also ensures a consistent appearance and performance.

Typical uses include inlet strainers, protective grilles, saltwater filtration, extraction systems, and corrosion-resistant barriers. This is a reliable, coarse-gauge Monel mesh suited to a wide range of technical or environmental applications.

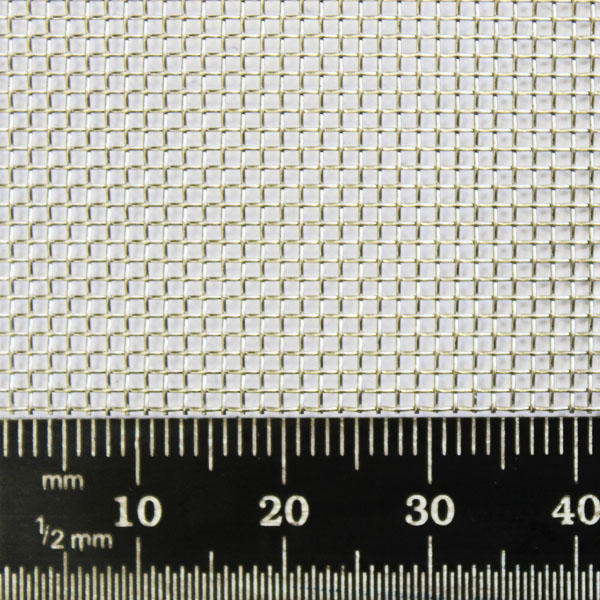

Wire Mesh Specification

• Mesh Count = 20 holes per linear inch. The amount of holes measured against a straight line inch
• Holes / Wires Per Square Inch = 400 holes per square inch. The amount of holes per linear inch squared
• Wire Thickness = 0.28mm. The thickness of each wire. The structure is thicker than this where two wires meet
• Hole Size / Aperture = 0.99mm. This is the square hole size from wire to wire
• Open Area % = 61%. The amount of the mesh that is open. The higher this number the more open a mesh is
• Cut With – Can easily be cut with standard kitchen scissors. We suggest that you do the same

Why Choose The Mesh Company?

Our group have been in the mesh industry for over 150 years. We are one of the UK’s most trusted mesh suppliers because:

• Quality products: We offer high-quality products that are designed to meet the needs of a wide range of customers.
• Wide range of products: We are known for offering a wide range of products, including mesh, fencing, netting, and other related products.
• Experienced staff: Our staff are knowledgeable, experienced, and can provide expert advice and assistance to customers. This can be especially helpful for customers who are unsure about which product to choose or who have specific requirements. We also regular write blogs and help guides to help explain what our materials can be used for.
• Competitive prices: We are sure that our prices are always the lowest around. This makes us an attractive option for customers who are looking for a cost-effective solution.
• Customer service: The Mesh Company place a high priority on service and offer excellent support and assistance to our customers. This can help to ensure that you will have a positive experience when working with The Mesh Company.

What Other Insect Mesh Options Are Available?

The Mesh Company has an enormous range of insect mesh products.  We truly are an industry leader among suppliers of weld mesh and woven wire materials. With the capabilities we have in-house, we can provide virtually anything you require.

Fibreglass, aluminium materials are also available in large stock quantities at bargain prices. See our blog for specific information on all of our various woven wire mesh materials.

FAQs For This Product

Is Monel Woven Wire Mesh Suitable For Saltwater Environments?

Yes. Monel is highly resistant to saltwater corrosion, making this mesh ideal for marine use, offshore filtration, and coastal installations.

Can I Cut This Monel Mesh Without Specialist Tools?

Absolutely. Despite its strength, this 20 mesh Monel can be easily cut with standard kitchen scissors for on-site adjustments or custom fitting.

What Applications Suit A 20 Mesh Monel Wire?

It’s perfect for coarse filtration, saltwater strainers, chemical processing screens, ventilation panels, and corrosion-resistant barriers.
