1.3mm x 1.1mm Rectangular Hole Mild Steel Mesh – 0.22mm Wire – 18 x 14 LPI

Description

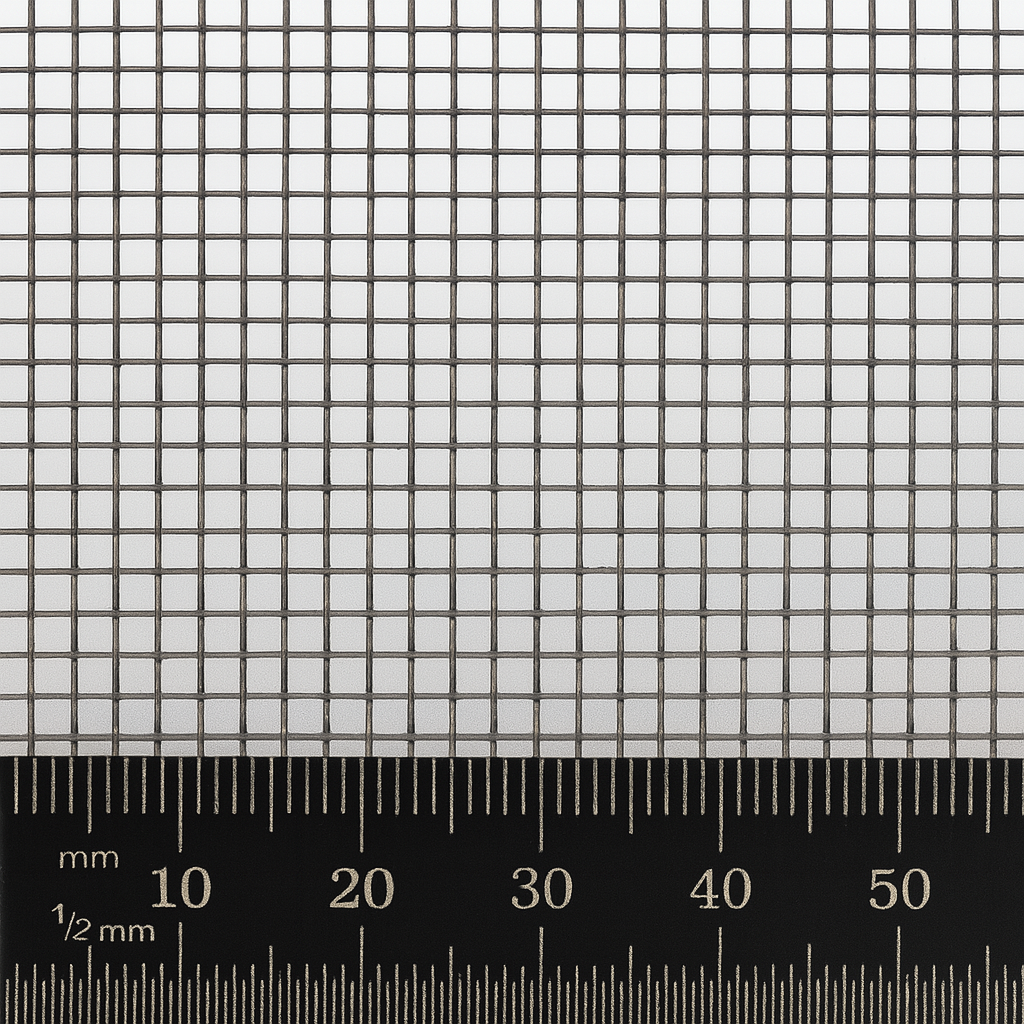

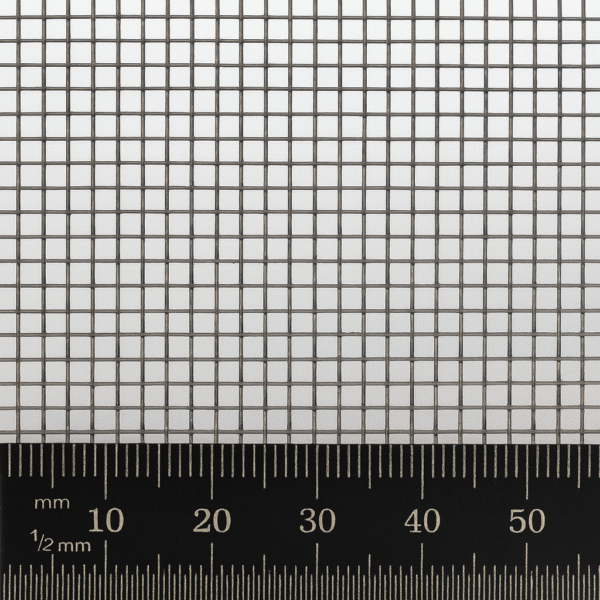

1.3mm x 1.1mm Rectangular Hole Mild Steel Mesh

This rectangular mild steel woven wire mesh features a mesh count of 18 x 14 holes per linear inch, creating elongated rectangular apertures measuring approximately 1.3mm by 1.1mm. It’s made from 0.22mm diameter wire, producing a light but structurally sound mesh that is well-suited to a wide range of screening, filtering, and ventilation applications.

The open area of this mesh is approximately 50%, making it highly breathable and ideal for use in areas where air, light, or liquids need to pass through easily. The rectangular aperture format gives it a slightly directional structure, which can be useful for custom industrial processes or creative design applications.

Mild steel wire mesh offers good structural strength and affordability. It is not corrosion-resistant like stainless steel, but it can be coated, painted, or galvanised post-use for enhanced longevity, particularly if used outdoors or in damp environments.

This mesh is easy to work with and can be cut to size using standard kitchen scissors. It’s a practical choice for DIY projects, sieving, panels, crafts, and basic filtration tasks where the mesh may be mounted, bent, or framed.

Specification Of This Mesh:

• Mesh Count = 18 x 14 holes per linear inch. The amount of holes measured against a straight line inch
• Wire Thickness = 0.22mm. The thickness of each wire. The structure is thicker than this where two wires meet
• Hole Size / Aperture = 1.3 x 1.1mm. This is the rectangular hole size from wire to wire
• Open Area % = 50%. The amount of the mesh that is open. The higher this number the more open a mesh is. This is a very high open area%
• Cut With – We cut this mesh with scissors. We suggest that you do the same
